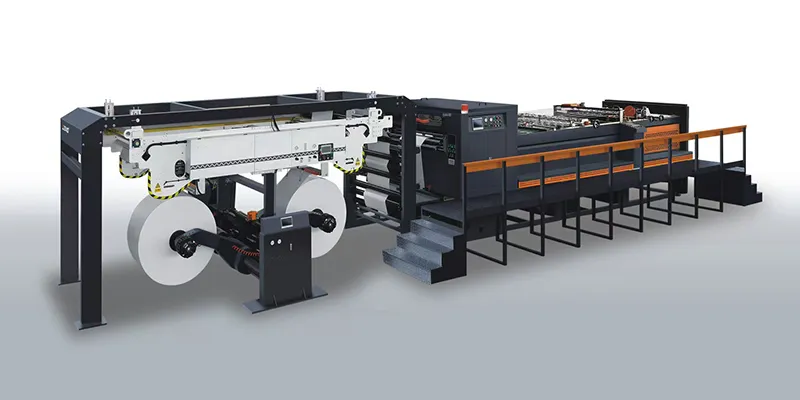

Dual Rotary Sheeter (Foil & Metallic Paper Cutting)
We offer Dual Rotary Sheeter specifically engineered for converting high-value materials such as metallic cardstock, foil-laminated paper, and holographic laser paper. This specialized paper converting equipment is designed to meet rigorous standards for cut quality and operational stability required in printing and packaging applications.
Features
- Superior Edge Quality: Utilizing a dual rotary spiral knife structure, this paper roll sheeter machine minimizes cutting resistance and produces clean, burr-free edges. This effectively prevents common issues like rough edges, edge chipping, or pressure marks on sensitive metallic surfaces.
- High-Precision Components: Integrated with precision bearings and cutting knives to ensure consistent dimensional accuracy and clean cross-sections.
- Sheet Flatness: An integrated decurling and leveling unit significantly improves sheet flatness and maintains stable web tension. The finished sheets are ready for immediate use in printing processes without requiring additional edge trimming.
- Operational Value: Designed for converters focusing on metallic cardstock and premium packaging, providing a stable platform for high-volume production and cost optimization.
Specifications
| Series | ZNSLX-1450 | ||
| Model | |||
| Cutting Method | Dual Rotary Knife System | Dual Rotary Knife System | Dual Rotary Knife System |
| Paper Weight Range | 80-1000g | 80-1000g | 80-1000g |
| Cutting Length Accuracy | 1000mm±0.15mm | 1000mm±0.15mm | 1000mm±0.15mm |
| Total Machine Weight | 16000kgs | 17000kgs | 18000kgs |
| Power Supply | 380V/220V×50Hz | 380V/220V×50Hz | 380V/220V×50Hz |
| Max. Cutting Speed | 350m or 350 cuts/min | 350m or 350 cuts/min | 350m or 350 cuts/min |
| Cut Length Range | 450-1650mm | 450-1650mm | 450-1650mm |
| Max. Roll Diameter | 1800mm (71") | 1800mm (71") | 1800mm (71") |
| Max. Web Width | 1450mm | 1450mm | 1450mm |
| Number of Slitting Sections | 1 section, 2 sheets output | 1 section, 2 sheets output | 1 section, 2 sheets output |
| Air Supply | 0.8MPa | 0.8MPa | 0.8MPa |
| Machine Dimension | 11.5m×4.3m×2.5m | 12.5m×4.3m×2.5m | 14.5m×4.3m×2.5m |
| Max. Stack Height | 1600mm | 1600mm | 1600mm |
| Series | ZNSLX-1750 | ||
| Model | |||
| Cutting Method | Dual Rotary Knife System | Dual Rotary Knife System | Dual Rotary Knife System |
| Paper Weight Range | 80-1000g | 80-1000g | 80-1000g |
| Cutting Length Accuracy | 1000mm±0.15mm | 1000mm±0.15mm | 1000mm±0.15mm |
| Total Machine Weight | 16500kgs | 18000kgs | 19000kgs |
| Power Supply | 380V/220V×50Hz | 380V/220V×50Hz | 380V/220V×50Hz |
| Max. Cutting Speed | 350m or 350 cuts/min | 350m or 350 cuts/min | 350m or 350 cuts/min |
| Cut Length Range | 450-1650mm | 450-1650mm | 450-1650mm |
| Max. Roll Diameter | 1800mm (71") | 1800mm (71") | 1800mm (71") |
| Max. Web Width | 1750mm | 1750mm | 1750mm |
| Number of Slitting Sections | 1 section, 2 sheets output | 1 section, 2 sheets output | 1 section, 2 sheets output |
| Air Supply | 0.8MPa | 0.8MPa | 0.8MPa |
| Machine Dimension | 11.5m×4.6m×2.5m | 12.5m×4.6m×2.5m | 14.5m×4.6m×2.5m |
| Max. Stack Height | 1600mm | 1600mm | 1600mm |
| Series | ZNSLX-1950 | ||
| Model | |||
| Cutting Method | Dual Rotary Knife System | Dual Rotary Knife System | Dual Rotary Knife System |
| Paper Weight Range | 80-1000g | 80-1000g | 80-1000g |
| Cutting Length Accuracy | 1000mm±0.15mm | 1000mm±0.15mm | 1000mm±0.15mm |
| Total Machine Weight | 17000kgs | 18000kgs | 20000kgs |
| Power Supply | 380V/220V×50Hz | 380V/220V×50Hz | 380V/220V×50Hz |
| Max. Cutting Speed | 350m or 350 cuts/min | 350m or 350 cuts/min | 350m or 350 cuts/min |
| Cut Length Range | 450-1650mm | 450-1650mm | 450-1650mm |
| Max. Roll Diameter | 1800mm (71") | 1800mm (71") | 1800mm (71") |
| Max. Web Width | 1950mm | 1950mm | 1950mm |
| Number of Slitting Sections | 1 section, 2 sheets output | 1 section, 2 sheets output | 1 section, 2 sheets output |
| Air Supply | 0.8MPa | 0.8MPa | 0.8MPa |
| Machine Dimension | 11.5m×4.8m×2.5m | 12.5m×4.8m×2.5m | 14.5m×4.8m×2.5m |
| Max. Stack Height | 1600mm | 1600mm | 1600mm |
