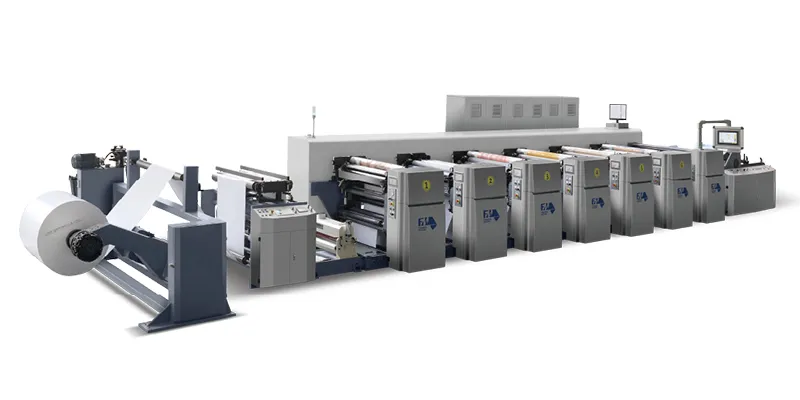

Flexo Press (Petal Type)
The Petal Type Flexo Press is a versatile flexo printing machine engineered for high-quality printing on diverse substrates. Featuring an accessible "petal-style" open structure, it allows for rapid plate cylinder changes and simplified maintenance, making it an ideal solution for packaging and paper product manufacturing.
This petal type flexo press is engineered specifically for the eco-friendly packaging industry, serving diverse applications in food and medical sectors including paper bags, cartons, paper cups, pre-printed corrugated boxes, express bags, and liquid packaging. It is compatible with a wide range of substrates such as kraft paper, cardstock, coated paper, multi-wall paper, laminated composites, non-woven fabrics, and heavy paperboard.
The flexo printing machine features a petal-style quick-change plate mounting structure, enabling highly efficient exchange of plate and anilox rollers through a simplified "one-touch" operational design that ensures the nip position is locked accurately in a single pass.
Furthermore, the full-servo shaftless drive system, integrated with automatic pre-registration and pre-inking functions, maintains stable color alignment during acceleration and deceleration. This significantly reduces setup times and material waste while enhancing overall production efficiency and consistent finished quality.
- Quick-changeover: Features a quick-change sleeve system for plate cylinders, significantly reducing job changeover times and is versatile for handling substrates f different sizes.
- Drive System: Full servo drive eliminates gear pitch limitations for repeat lengths, providing superior flexibility for diverse job specifications.
- Ink Compatibility: Compatible with both water-based and UV inks. Supports independent or hybrid printing modes to accommodate a wider range of substrates and graphic requirements.
- Automation & Yield: Integrated digital inspection, digital plate mounting, and pre-registration systems reduce operator dependence and significantly increase production yield.
| Machine Option | 39.5' (1020) | 47.5' (1220) | 51' (1320) | 53' (1350) | 57' (1450) |
| Max. Web Width | 1020mm | 1220mm | 1320mm | 1370mm | 1470mm |
| Max. Printing Width | 1000mm | 1200mm | 1300mm | 1350mm | 1450mm |
| Printing Repeat | 320–1200mm | 320–1200mm | 320–1200mm | 360–1200mm | 360–1200mm |
| Max. Unwind Diameter | 1524mm | 1524mm | 1524mm | 1524mm | 1524mm |
| Max. Rewind Diameter | 1524mm | 1524mm | 1524mm | 1524mm | 1524mm |
| Gearing | 1/8cp | 1/8cp | 1/8cp | 1/8cp | 1/8cp |
| Max. Printing Speed | 240m/min | 240m/min | 240m/min | 240m/min | 240m/min |
| Diameter of Web Guide Roller | 100mm | 100mm | 100mm | 100mm | 100mm |
| Drying Method | Hot Air Drying/ IR (Infrared) Drying/ UV LED Curing | ||||
| Applicable Substrates | Art/Coated Paper (80–350gsm), BOPP/PET, Cardstock, Kraft Paper, Laminated & PE Coated Paper | ||||

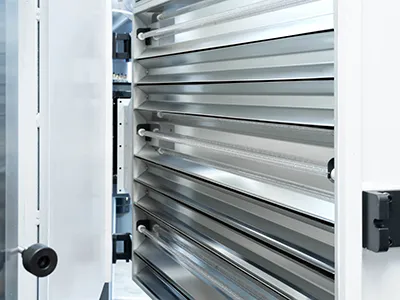

IR (Infrared) Drying/ UV LED Curing

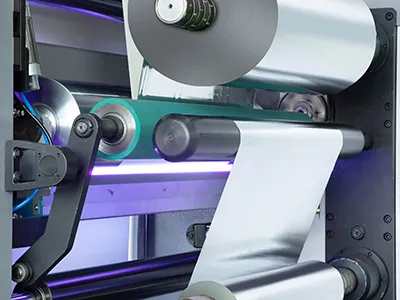

Cold Foiling Unit

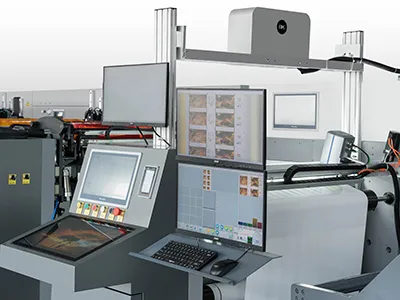

Digital Inspection System
