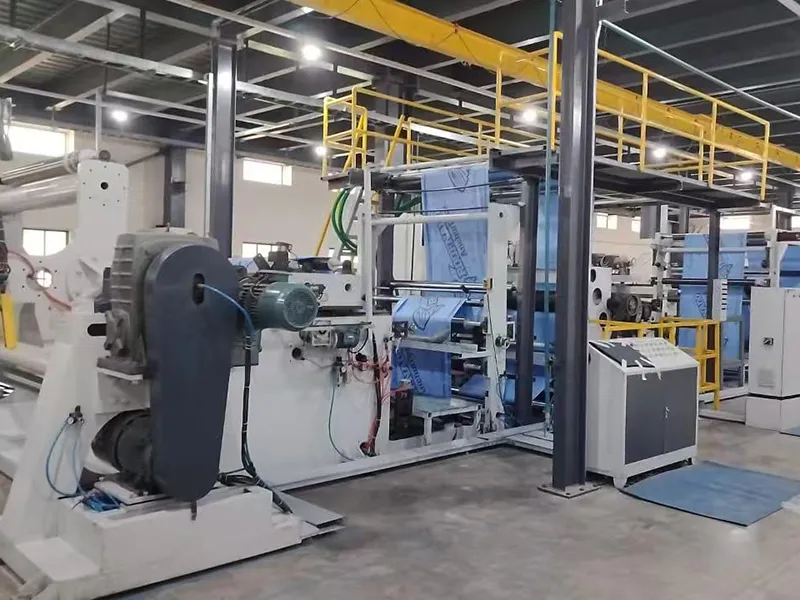

Tandem Coating and Lamination with Centre Winding

Tandem Coating and Lamination with Centre Winding

  • Lamination Thickness0.01-0.10mm
  • Main Unwinding MaterialPaper, Fabric
  • 2nd Unwinding MaterialFilm, Foil
  • Applicable ResinLDPE, PP
  • Design Line Speed300m/min
Specifications
Model JDLM1300/110*2 JDLM1700/110*2 JDLM2400/120*2
Screw Diameter Ø110mm*2 Ø110mm*2 Ø120mm*2
Product Width 600-1200mm 900-1600mm 1300-2200mm
Lamination Thickness 0.01-0.10mm
Main Unwinding Material Paper, Fabric
2nd Unwinding Material Film, Foil
Applicable Resin LDPE, PP
Design Line Speed 300m/min
Working Speed 120-300m/min (depending on substrate and coating material)
Max. Extrusion Output 280kg/h each 280kg/h each 350kg/h each
Main Motor Power 55kW*2 55kW*2 75kW*2
Total Power 280kW 300kW 420kW
Main Unwind Diameter ≤Ø1200mm
2nd Unwind Diameter ≤Ø500mm (Optional)
Rewind Diameter ≤Ø1300mm
Power Supply 380V, 3 Phase, 4 Wire, 50Hz

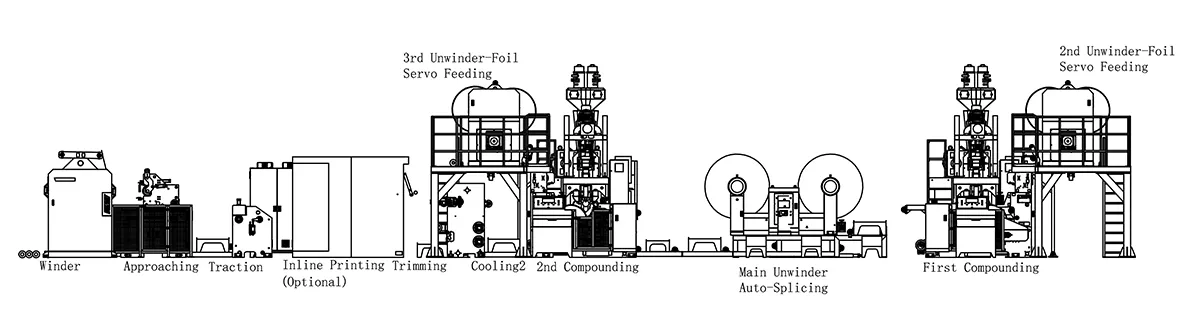

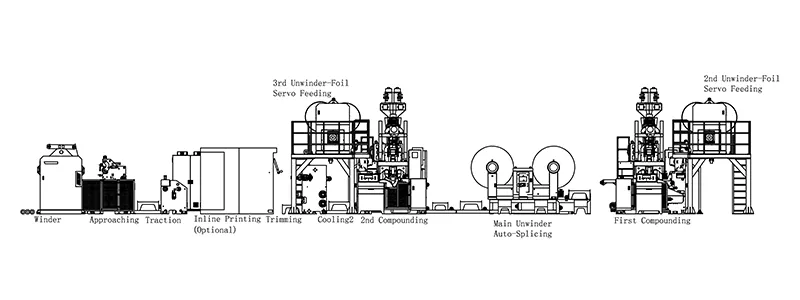

  • Machine Structure Drawing
Jianda is a company specializing in design and manufacturing of extrusion coating and lamination lines. With nearly 4 decades of engineering expertise, we provide custom-tailored solutions for global manufacturers in food packaging such as paper cups and hamburger wrapping paper, and industrial materials like cement sacks and geotextiles. By integrating equipment such as paper sheeter machine, slitter rewinder, flexo printing machine and die cutting machine, we offer a seamless extrusion coating lamination lines that allow our customers to process substrates ranging from kraft paper and aluminum foil to woven and nonwoven fabrics.
