Slitter Rewinder
Slitting and rewinding is a precision converting process that divides wide master rolls into multiple narrower rolls of specific widths. By using shear or razor cutting technologies, slitter-rewinders ensure clean edges and consistent roll tension, making them essential for preparing flexible materials like paper, film, and foil for downstream production.

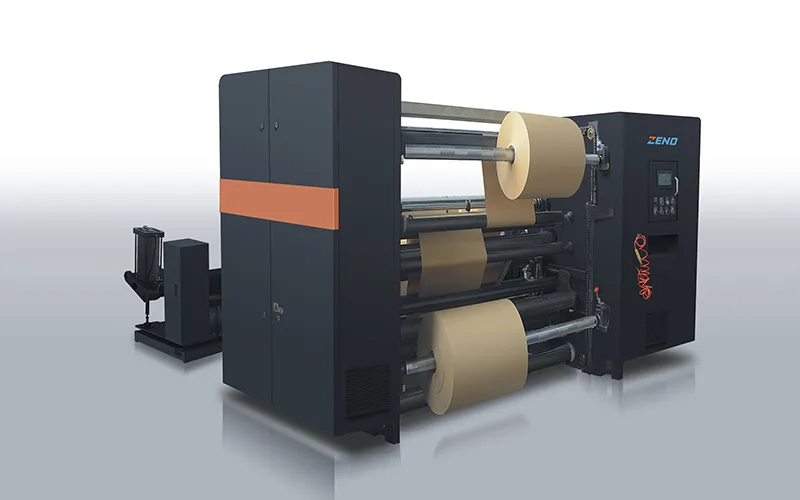

Our Slitter Rewinder is a vertical-type solution designed for the precision slitting and rewinding of large-diameter materials. It is engineered to handle various substrates, including kraft paper, cardboard, laminated paper, silicone oil paper, aluminum foil, and non-woven materials.
Features
- Tension Control: Utilizes vector/servo motors to maintain automatic constant tension throughout the center winding process.
- Stability: Equipped with variable frequency speed regulation to ensure smooth acceleration and stable high-speed operation up to 400m/min.
- Intelligent Monitoring: Integrated with automatic meter counting and alarm systems to minimize downtime and material waste
- Rewinding Structure: Features a dual A/B air-expansion shaft configuration with a motorized chain-driven discharge system for convenient and efficient finished roll unloading.
- Unwinding Correction: Equipped with an automatic web guiding and correction system to ensure precise slitting, even when processing irregular or unevenly wound base materials.
- Precision Slitting: Features a circular knife slitting system with a high-pressure blower for automatic waste edge discharge.
- Automated Roll Loading: Includes a shaftless hydraulic loading system for mater rolls.
Specifications
| Model | WZFQ-1400 |
| Max. Unwind Width | 1400mm |
| Max. Unwind Diameter | Ø1500mm |
| Min. Slitting Width | 40mm |
| Max. Rewind Diameter | Ø1100mm |
| Slitting Speed | ≤400m/min |
| Power Supply | 380V/50HZ |
| Total Power | 24.5kW |
| Machine Dimensions (L×W×H) | 4500×3200×1900mm |
| Total Machine Weight | 5000kg |
Machine Configuration Details

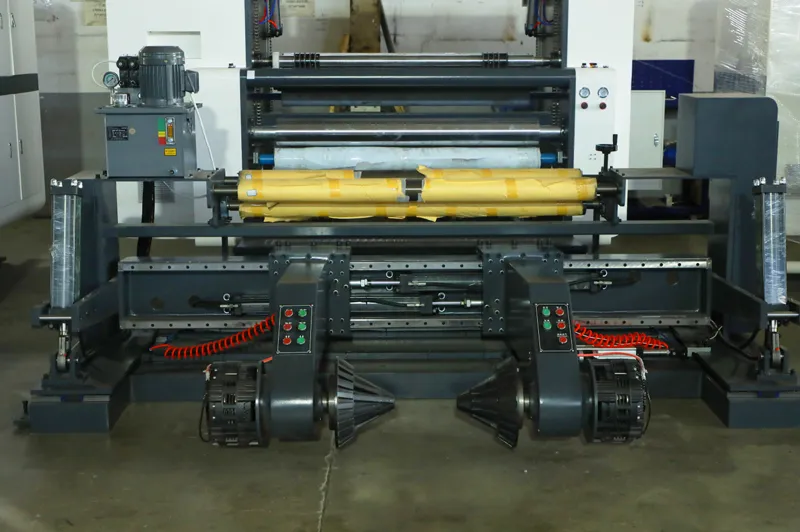

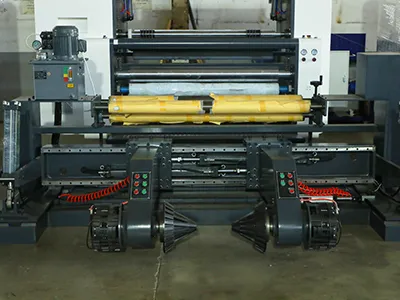

Unwinding Section: Hydraulic Shaftless Automatic Loading
- Lateral Movement: Controlled via linear guide rails.
- Loading: Shaftless automatic loading structure.
- Web Guiding: High-precision Edge Position Control (EPC) system.
- Tracking: Ultrasonic sensor guidance.
- Tension: Automatic pneumatic tension control.
- Adjustment: Manual/Automatic lateral and parallel substrate adjustment

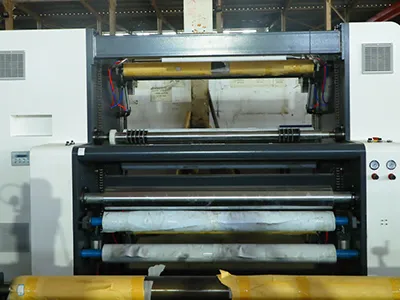

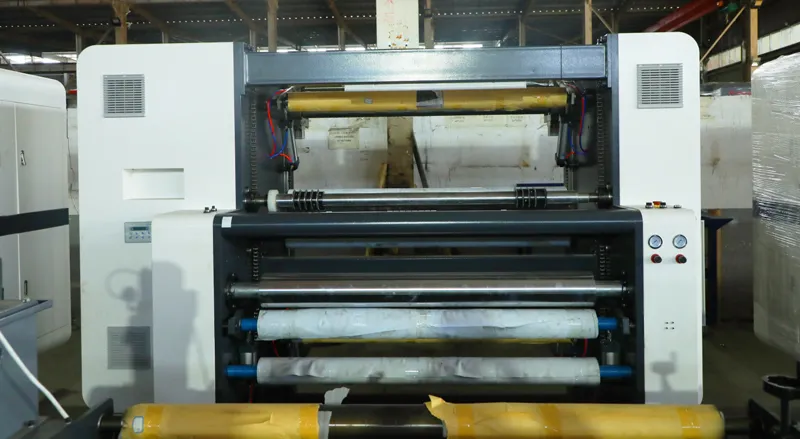

Main Drive Section
- Type: Active traction with pneumatic pressing.
- Drive: Main motor drives primary shaft and active rollers.
- Pressing: Controlled by pneumatic cylinders.
- Discharge: Motorized chain-driven unloading

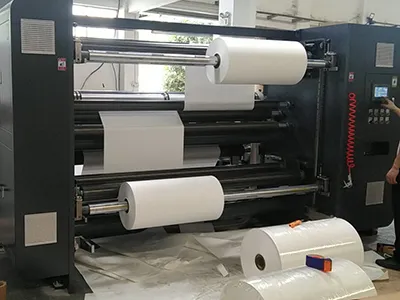

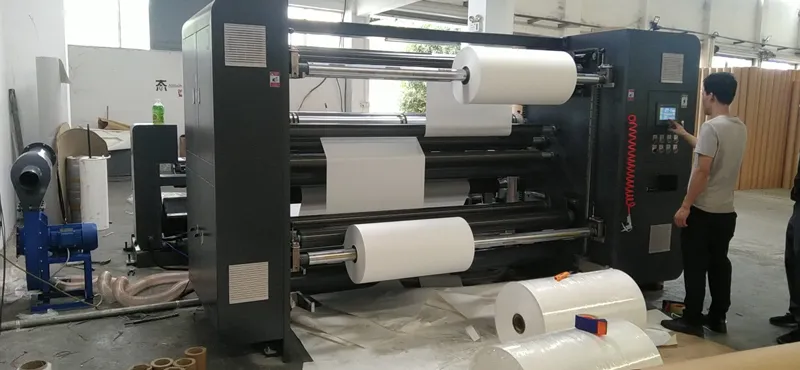

Rewinding Section: Dual Air-Expansion Shafts
- Method: Center winding.
- Shafts: Simultaneous winding on dual air-expansion shafts.
- Stability: Mechanical arms on linear guide rails.
- Surface Support Principle: The rewind shafts remain in close contact with the aluminum guide rollers for synchronized surface-assisted winding.
- Loading & Unloading: Equipped with a motorized automatic system for efficient rewind shaft loading and finished roll unloading.

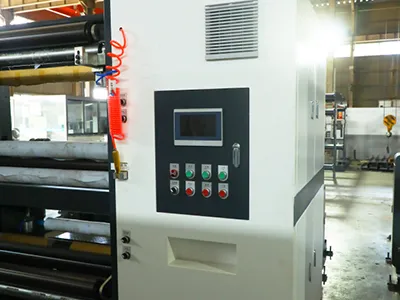

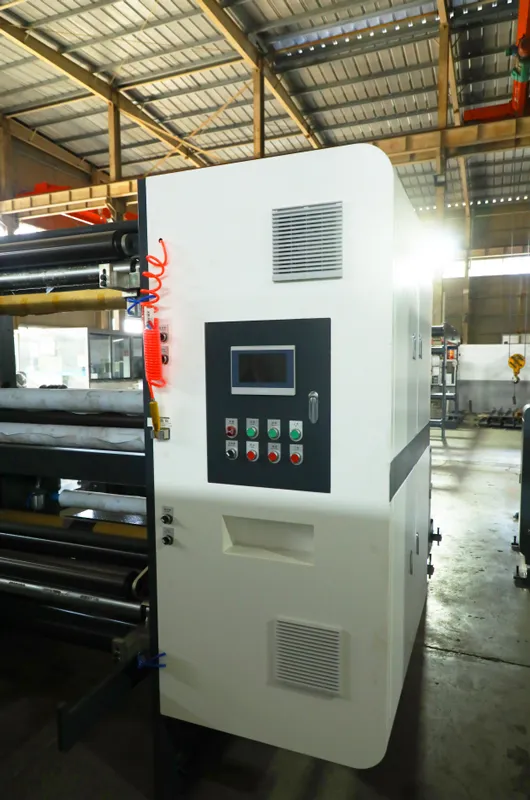

Control System: Integrated Cabinet
- Primary Control: Includes centralized management of the main motor, primary control box, and servo vector control for the rewind motors.
- Intelligent Functions: Integrated with an electronic meter counter for precise length tracking, automatic stop alarms, and automated fixed-length cutting.
- Preset Capabilities: Allows operators to preset specific slitting lengths or target rewind diameters for automatic machine shutdown.
