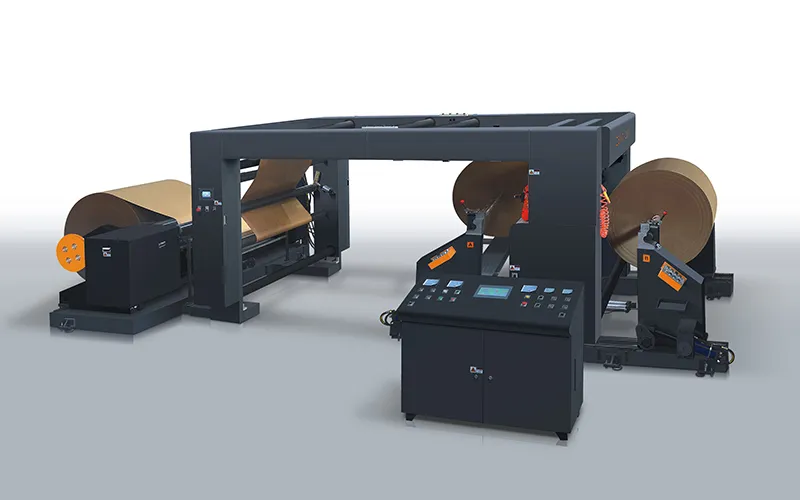

Jumbo Roll Slitter Rewinder
The Jumbo Roll Slitter Rewinder is engineered for high-capacity processing of heavy material rolls. It efficiently converts large-diameter master rolls of paper, board, and non-woven materials into precisely slit finished reels, providing the structural stability and torque required for heavy-duty industrial converting.
Our Jumbo Roll Slitter Rewinder is engineered for the high-efficiency slitting and rewinding of various jumbo rolls and heavy-duty web materials:
- Premium & Printing Paper: White board/cardstock, wood-free offset paper, kraft paper, and art/coated paper.
- Specialty Paper: Newsprint, carbonless paper, glassine/glazed paper, and filter paper.
- Functional & Industrial Materials: Laminated paper, silicone-coated paper, and various types of wrapping/packaging paper.
- Flexible & Composite Materials: Non-woven fabrics and paper-plastic composite materials.
Features
- Synchronized Control: Utilizes servo motors for synchronized operation and automatic taper tension control with center winding.
- Stability: Equipped with variable frequency speed regulation to ensure smooth acceleration and stable high-speed operation up to 400m/min.
- Intelligent Monitoring: Integrated with automatic meter counting and alarm systems to minimize downtime and material waste
- Rewinding Structure: Features a dual A/B air-expansion shaft configuration with a motorized chain-driven discharge system for convenient and efficient finished roll unloading.
- Web Guiding: Employs a static analog-type edge position control (EPC) system for precise unwinding.
- Precision Slitting: Features a circular knife slitting system with a high-pressure blower for automatic waste edge discharge.
- Automated Roll Loading: Includes a shaftless hydraulic loading system for mater rolls.
Specifications
| Model | ZNKFQ-1400 |
| Slitting Material Weight | 30-500gsm (depends on the substrate material type) |
| Max. Unwind Width | 1400mm |
| Max. Unwind Diameter | Ø1500mm |
| Max. Rewind Diameter | Ø1200mm |
| Slitting Width Range | 30-1400mm |
| Rewind Air-Expansion Shaft Diameter | Ø74mm/2 shafts |
| Slitting Speed | 100-400m/min (depends on the substrate material thickness) (600-800m/min optional) |
| Total Power | 39kW |
| Machine Dimensions (L×W×H) | 6500×4400×2700mm |
| Total Machine Weight | 10000kg |
Machine Configuration Details
Unwinding Section: Linear Guide Rail With Hydraulic Shaftless Automatic Loading
- Lateral Movement: Controlled via linear guide rails.
- Loading: Shaftless automatic loading structure.
- Web Guiding: High-precision Edge Position Control (EPC) system.
- Tracking: Ultrasonic sensor guidance.
- Tension: Automatic pneumatic tension control.
- Adjustment: Manual/Automatic lateral and parallel substrate adjustment

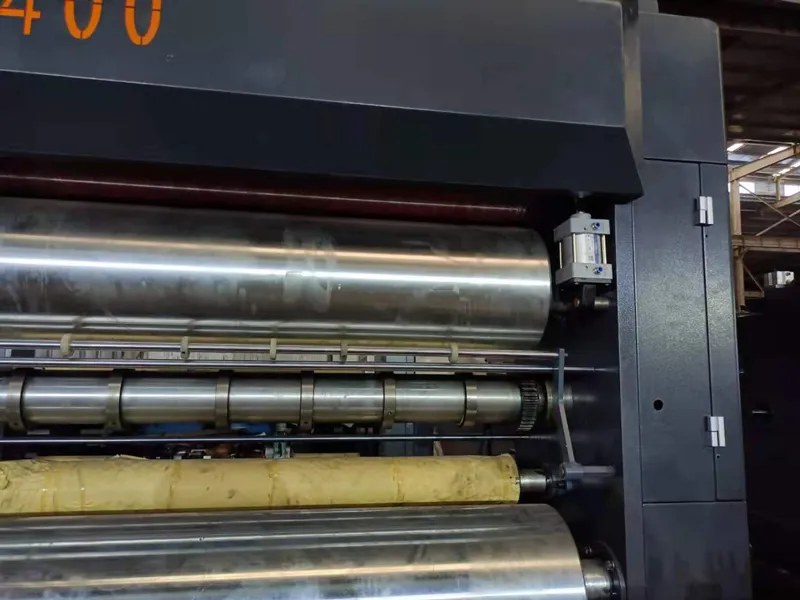

Main Drive Section
- Type: Active traction with pneumatic pressing.
- Drive: Main motor drives primary shaft and active rollers.
- Pressing: Controlled by pneumatic cylinders.

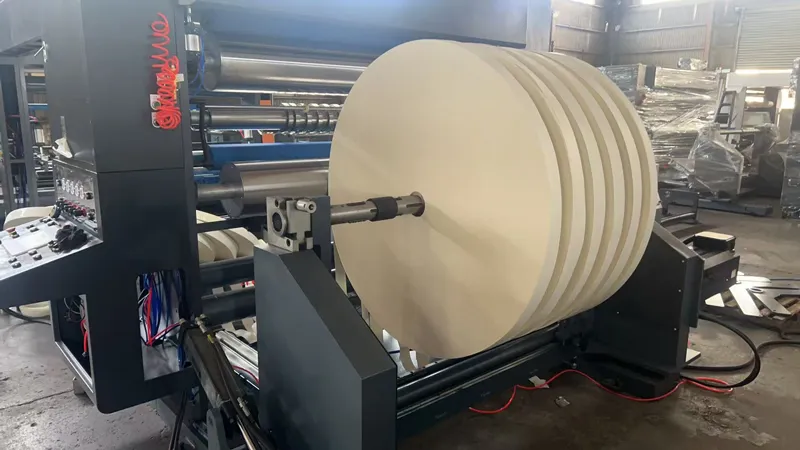

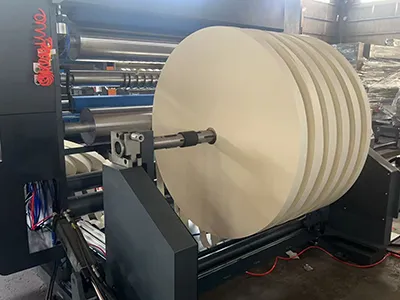

Rewinding Section: Dual Air-Expansion Shafts
- Method: Center winding.
- Shafts: Simultaneous winding on dual air-expansion shafts.
- Stability: Mechanical arms on linear guide rails.
- Surface Support Principle: The rewind shafts remain in close contact with the aluminum guide rollers for synchronized surface-assisted winding.
- Loading & Unloading: Equipped with a motorized automatic system for efficient rewind shaft loading and finished roll unloading.

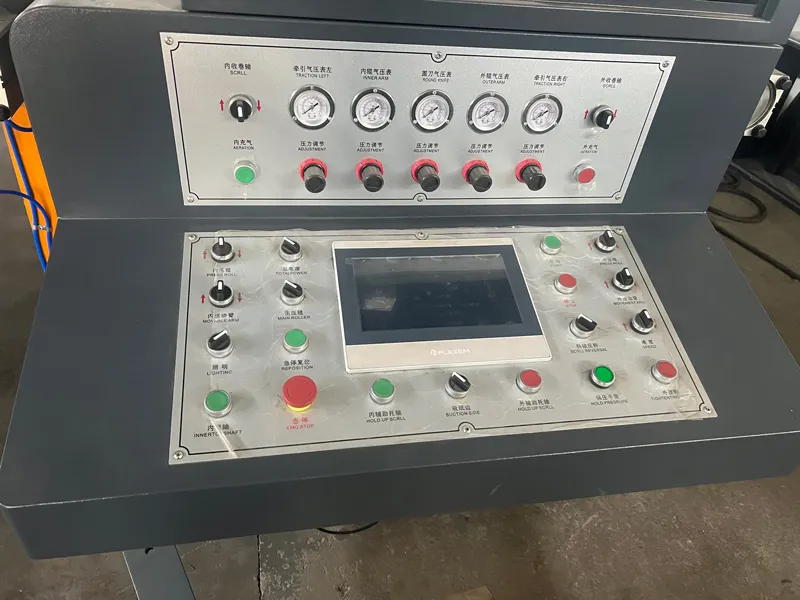

Control System: Integrated Cabinet
- Primary Control: Includes centralized management of the main motor, primary control box, and servo vector control for the rewind motors.
- Intelligent Functions: Integrated with an electronic meter counter for precise length tracking, automatic stop alarms, and automated fixed-length cutting.
- Preset Capabilities: Allows operators to preset specific slitting lengths or target rewind diameters for automatic machine shutdown
